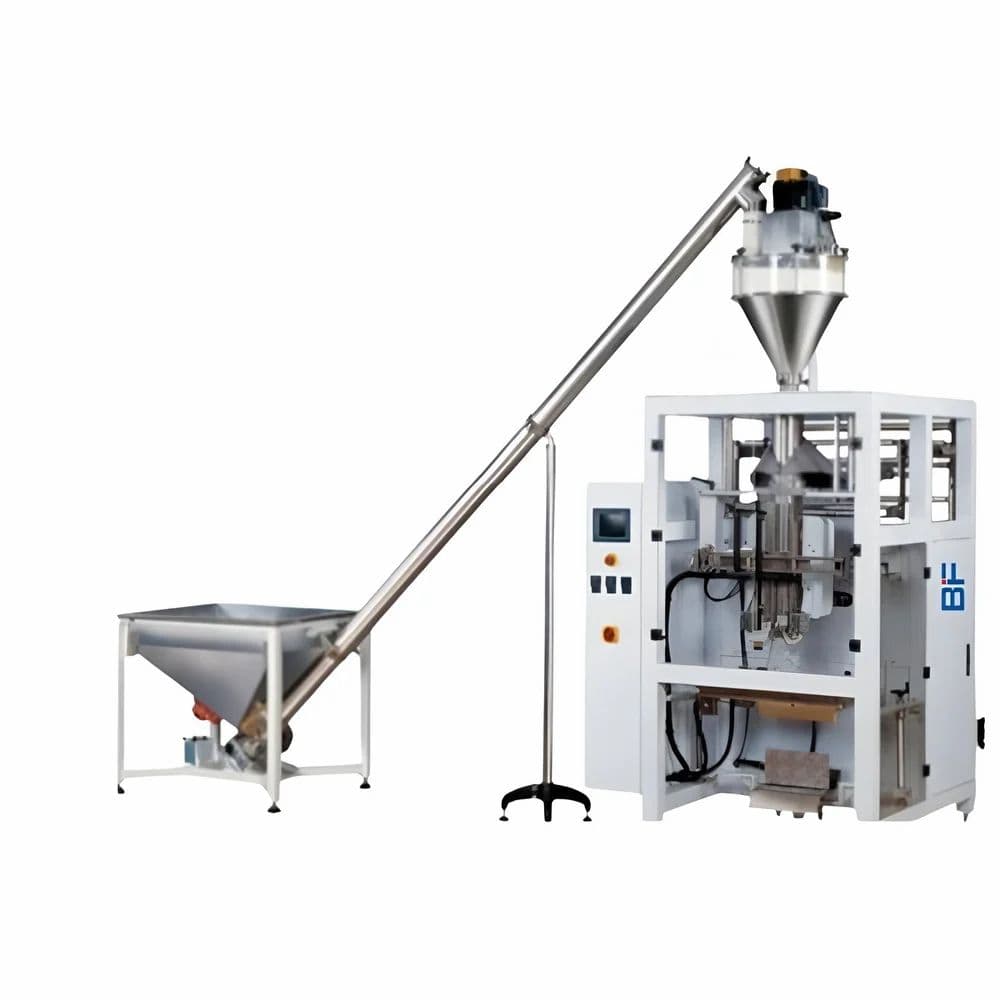

Representative imagePacking Machine
Automatic VFFS Auger Filling Machine
Ref BIF-015
Automatic Collar Type Form Fill And Seal Machine With Servo Operated Auger Filler.
₹ 6,50,000/Piece
Final price depends on configuration and output rate.
Specifications
| Machine | |
|---|---|
| Machine Type | Vertical FFS (collar type) with servo-operated auger filler |
| Automation Grade | Fully Automatic |
| Application | All free-flow powders, spices and flours |
| Output | |
| Packing Speed | 30–50 ppmTechnical sheet: ~25 pouches/min at 500 g, ~20 at 1000 g |
| Filling Range | 20–100 gTechnical sheet: 500 g – 1000 g |
| Filling Accuracy | ±1–2%Depends on product nature and bulk density |
| Filling and sealing | |
| Feeding System | Auger Filler |
| Sealing Type | Center Seal |
| Sealing Method | Pneumatic vertical and horizontal sealing |
| Film Material | Heat-sealable laminate or aluminium foil, in roll form |
| Nitrogen Flushing | Yes |
| Batch Cutting | Optional, chaplets of 10 sachets |
| Construction | |
| Body Material | Mild Steel |
| Contact Parts Material | Stainless Steel 304 |
| Power and controls | |
| Power Consumption | 5 kW |
| Main Motor | 3 HP |
| Servo Motor | 2.2 kW |
| Phase | 3 phase, 415 V AC ±10%Also quoted: single phase, 1 HP |
| Control System | HMI + PLC (Schneider / Delta / Siemens) |
| Temperature Controller | PID based |
| Branded Components | Festo / Pneumax pneumatics, P&F photocell, Bonfiglioli / Crompton motors, Schneider electricals |
| Size and weight | |
| Machine Dimensions | 1050 × 800 × 1400 mm (L × W × H) |
| Weight | ~1250 kg |
About this machine
Automatic Collar Type Form Fill And Seal Machine With Servo Operated Auger Filler. Technical Specifications: Product application: Flours. Filling Range: 500gm - 1000gm. Pouch Size: To be conveyed in mm. Packing speed: For 500gm: Approx. 25 pouches per minute. For 1000gm: Approx. 20 Pouches/ Minute. Sachets orientation: Front collection. Sealing type: Center seal. Filling System: Servo driven auger Filler. Filling Accuracy: +/-1-2%. Packaging film: Any continuous heat seal able laminated film in roll form. Film draw mechanism: Through clutch & brake mechanism. Machine motion: Intermittent. Horizontal sealing: Pneumatic type. PLC: Microprocessor controlled MMI with PLC (Schneider / Delta/ Siemens Make). Micro view: Yes (Schneider / Delta/ siemens make). Pneumatic components: Festo/Pneumax make. Temperature Controller: PID Based. Photocell: P & F make. Contact Parts: Stainless Steel- 304. Batch cutting option: YES. (Chaplets of 10 sachets each and cutting.) Nitrogen Flushing: Yes. Electrical motors: Bonfiglioli / Crompton. Other electrical components: Schnieder make. Electrical Supply & Requirement: 3 phase x 415 V, A.C. +/- 10% Power Consumption: 5 KW approx.
